01
AI vision and pose detection
Separates parts in clutter, then refines each pose against your CAD.
◆ The brain of StereoPick

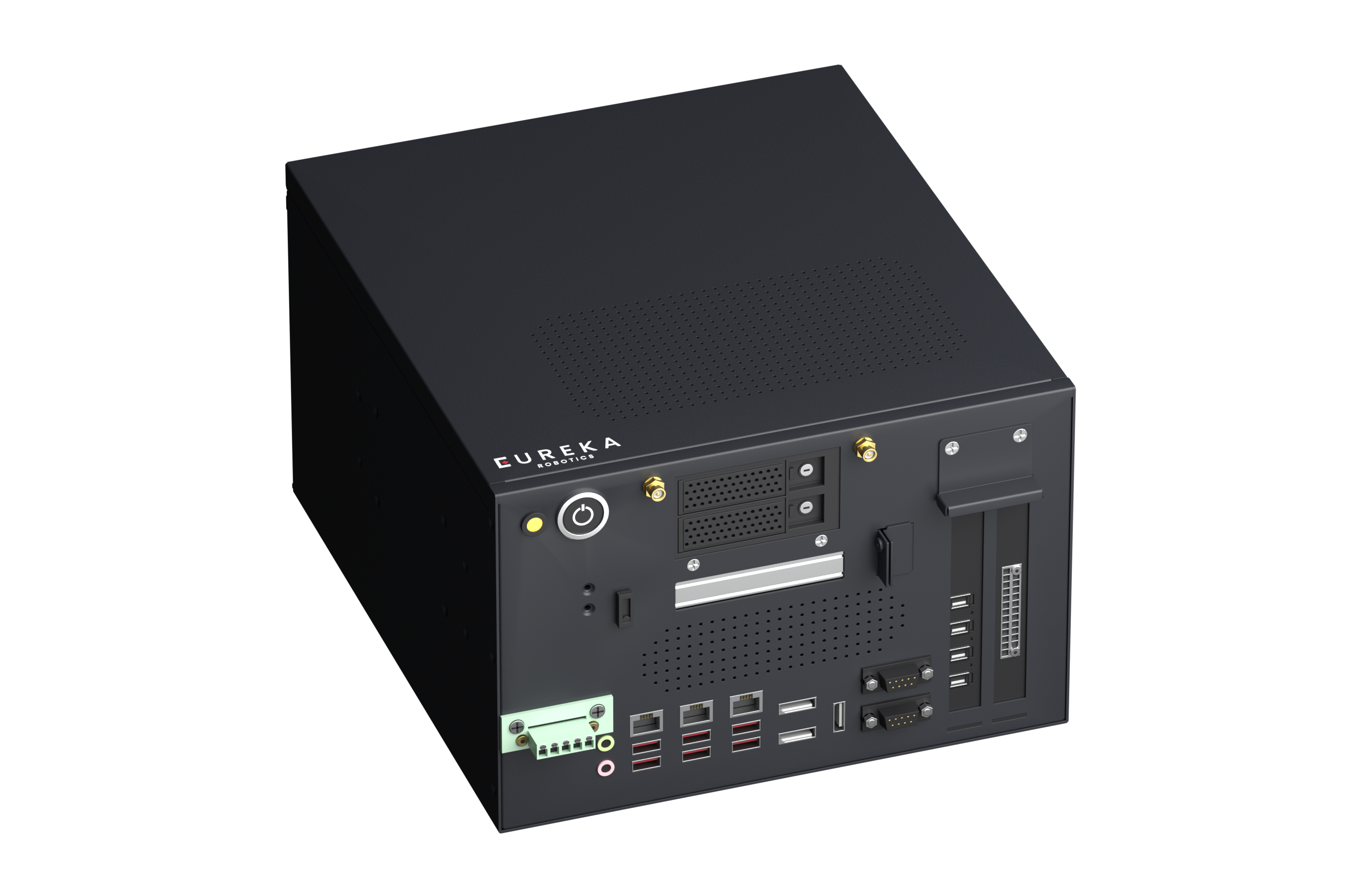

Eureka Controller
AI vision and pose detection · Collision-free motion planning · High-accuracy calibration · On-site AI training*: data stays in-house
RTX 2000 Ada
NVIDIA GPU for AI vision and training
100% offline*
CAD and data stay in your plant
4 protocols
EtherNet/IP, Modbus, gRPC, TCP/IP
Fanless
IP40, −20 to 50 °C, 9–36 VDC
01 / What it runs
Orchestrate your cell
Camera in, robot motion out. Everything between the 3D image and the pick happens on the Controller.
02

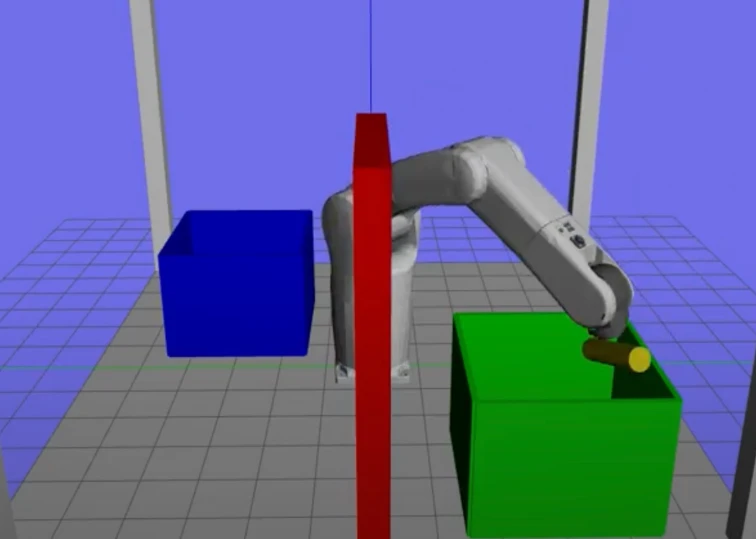

Collision-free motion planning
Plans grasp and path around the bin walls and the other parts.
03

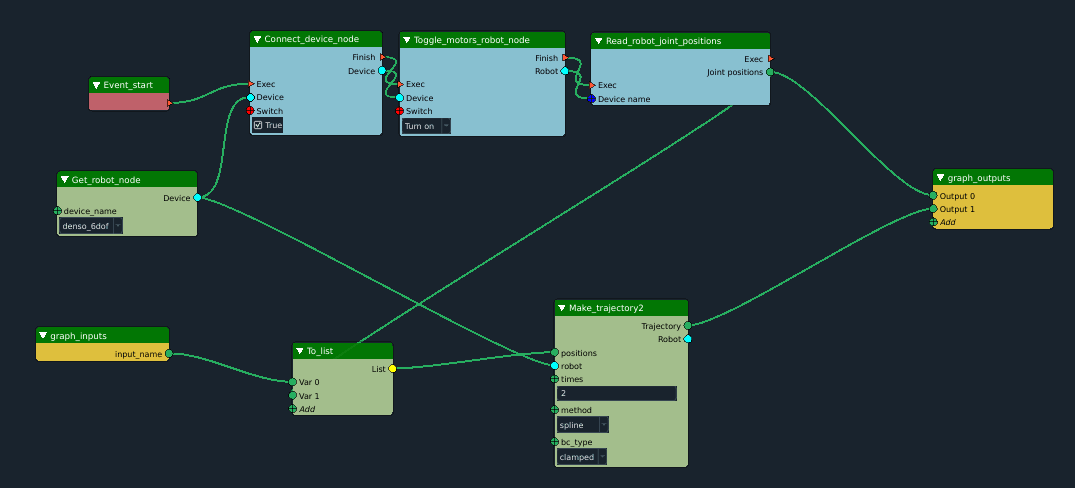

High-accuracy calibration
Automatic hand-eye calibration between camera and robot.
04

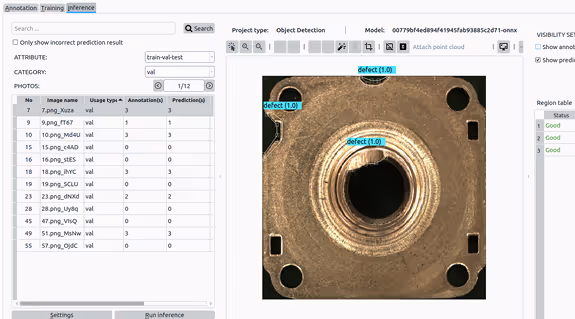

On-site AI training*
Models train on the Controller. Your CAD and data stay in-house.
*Edge AI model training (privacy option) is a paid add-on.
02 / Data stays on site
No cloud. No internet required.
Training and picking run fully offline on the Controller.* Your CAD files and know-how never leave your plant.
Need faster training? An optional secure Eureka training server is available. *Edge AI model training (privacy option) is a paid add-on.
03 / Specifications
Eureka Controller specs
ECO-ADV-3001 · ECO-ADV-3001-B
Processor and memory
- CPU
- Intel Core i5-12500 (3001) · i5-14400 (3001-B)
- GPU
- NVIDIA RTX 2000 Ada
- RAM · Storage
- 32 GB · 512 GB SSD
I/O and connectivity
- Ethernet
- 2 × RJ45, 10/100/1000 Mbps
- USB
- 2 × USB 3.2 Gen2, 6 × USB 3.2 Gen1
- Serial
- 2 × DB9, RS-232/422/485
- Video
- 1 × HDMI, 4 × miniDP
- PCIe
- x16 (GPU), x4 (free)
- Wireless
- Intel AC 9260 / Qualcomm QCNFA765
Power
- Input
- 9–36 VDC, ATX/AT
- Consumption
- 130 W typical, 205 W max
Environment
- Protection
- IP40, fanless
- Temperature
- −20 to 50 °C (0.7 m/s airflow)
- Humidity
- 95% at 40 °C, non-condensing
- Vibration · shock
- SSD 3 Grms, 5–500 Hz · SSD 20 G
Mechanical
- Dimensions
- 235 × 192 × 127 mm
- Weight · mounting
- 3.9 kg · desktop or wall
- Certifications
- CE/FCC Class A, CB/UL, CCC, BSMI
Compatible with
all major robot brands
Your robot program asks for the next pick and gets back where to grab it. Everything runs on-site on the Eureka Controller, with no cloud connection and no subscription. Edge AI model training (privacy option) is a paid add-on.
Integrated out of the box
Any other robotvia open API
Find an integrator
Work with a Eureka-trained integrator in your region to deliver the full cell.
